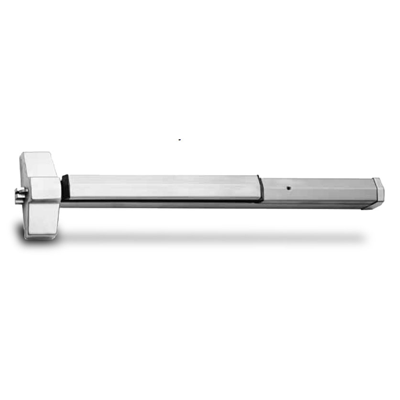

Yale 7150 Panic Hardware With Squarebolt 7150-36 630

Regular price

Quantity: In Stock

SKU: 7150-36 630

Choose from the following options:

Qty:
ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$21.00

Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock

Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock

$31.10

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$195.00

ShurLok SL100 Numeric Code Blue LockBox ShurLok SL100 Numeric Code Blue LockBox

ShurLok SL100 Numeric Code Blue LockBox

$21.00

  • Description

The Yale 7150 Panic Hardware With Squarebolt 7150-36 689 is a higher security panic device for single and double doors with a mullion between them. The difference between this and a normal panic bar is that the latchbolt is square instead of beveled. This makes a greater amount of pressure required to force open the door. This panic device is for 36 inch wide doors but can be cut down to fit doors as narrow as 30 inches wide.

Features

  • Patented SquareBolt security deadbolt (Pat. no. 5,605,362) designed for maximum holding power
  • Non-handed for easy installation
  • Can be retrofitted onto existing 7100 series templated doors
  • Fully adjustable surface-mounted 3/8" diameter roller strike complete with positive locking plate and shims
Specifications
  • Door Opening Width - 36 for 30" - 36" (76cm - 91cm) doors
  • Door Thickness - 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering.
  • Minimum Stile Width - 4-1/2" (114mm)
  • Projection - 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
  • Deadbolt - Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection
  • Strike - 757F, 793 optional (double door application, panic only)
  • Fasteners - Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
  • Trims - 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F
  • series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-15.
  • Dogging - Hex key dogging supplied standard on panic devices
  • Options - Shim kit #223, sex nuts and bolts, MicroShield¨
The Yale 7150 Panic Hardware With Squarebolt 7150-36 689 comes in the painted aluminum finish.
