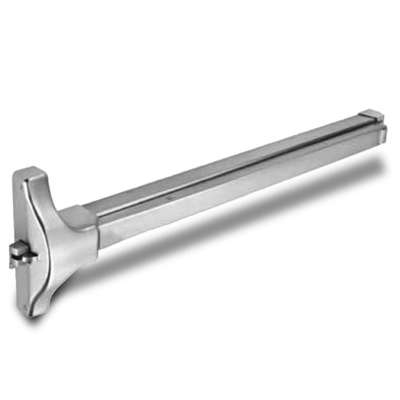

Yale 2150 Panic Bar With Squarebolt 2150-36 689

Regular price

Quantity: In Stock

SKU: 2150-36 689

Choose from the following options:

Qty:
Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$61.00

Stanley Best Key Blanks Stanley Best Key Blanks

Stanley Best Key Blanks

$2.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$144.00

ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$14.50

  • Description

The Yale 2150 Panic Bar With Squarebolt 2150-36 689 is a higher security panic device for single and double doors with a mullion between them. The difference between this and a normal panic bar is that the latchbolt is square instead of beveled. This makes a greater amount of pressure required to force open the door. This panic device is for 36 inch wide doors but can be cut down to fit doors as narrow as 30 inches wide.

Features

  • Patented SquareBolt security deadbolt (Pat. no. 5,605,362) designed for maximum holding power
  • Designed for wide stile doors
  • Non-handed for easy installation
  • Steel interlock “E” bracket maintains door-to- mullion relationship in fire-labeled devices
Specifications
  • Door Opening Width - 36 for 30" - 36" (76cm - 91cm) doors
  • Door Thickness - 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering.
  • Minimum Stile Width - 4-1/2" (114mm)
  • Projection - 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
  • Deadbolt - Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection
  • Strike - 757F, 793 optional (double door application, panic only)
  • Fasteners - Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
  • Trims - 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F
  • series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-15.
  • Dogging - Hex key dogging supplied standard on panic devices
  • Options - Shim kit #223, sex nuts and bolts, MicroShield®
The Yale 2150 Panic Bar With Squarebolt 2150-36 689 comes in the painted aluminum finish.
