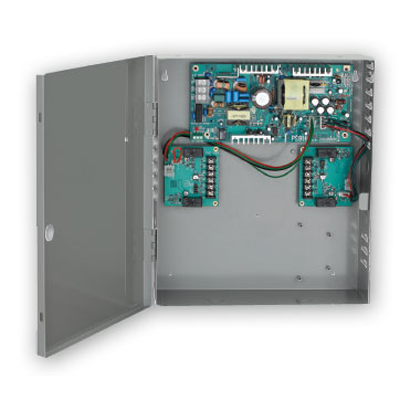

Von Duprin PS914-2RS Power Supply

Von Duprin has updated their power supplies for their equipment. This PS9114-2RS is the replacement for the PS873-2 Power Supply. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This new design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified panic devices, strikes, card readers, etc). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal provided. * All PS900 Series of power supplies and option boards have been tested and certified to meet UL294. Features

• Low voltage DC, regulated and filtered
• 4A @ 12/24 VDC output, field selectable with jumper
• AC input and DC output LED status indicators
• Designed with high in rush current for powering electrified panic devices
• Universal 120 -240 VAC input
• Electronic power limiting foldback circuit for AC current overload protection
• Two polarized connectors for distribution boards
• Fused primary input
• AC status monitor - isolated SPDT contacts
• Cover mounted AC input indication
• Hinged cover w/ lock down screws
• High voltage protective cover
