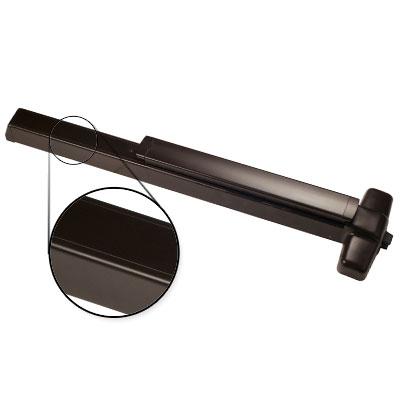

Von Duprin AX-PA98EO F 3 US10B Oil Rubbed Bronze Finish Three Foot Fire Rated Accessible Rated Panic Bar Exit Only With Pushpad Armor

Regular price

Quantity: In Stock

SKU: AX-PA98EO F 3 US10B

Choose from the following options:

Qty:
Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock

Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock

$31.10

ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$21.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$195.00

ShurLok SL100 Numeric Code Blue LockBox ShurLok SL100 Numeric Code Blue LockBox

ShurLok SL100 Numeric Code Blue LockBox

$21.00

  • Description

The Von Duprin AX-PA98EO F 3 US10B Oil Rubbed Bronze Finish Three Foot Fire Rated Accessible Rated Panic Bar Exit Only With Pushpad Armor is currently available.

The 98 and 99 series exit devices from Von Duprin are for all types of single doors and double doors with a mullion. They are installed across the inside of a door to allow for egress during panic situations, where the door will operate by pushing against the bar. The 98 series panic bars have a smooth mechanism case while the 99 series has a grooved mechanism case. This rim device is non-handed, which means it can be installed on doors that swing either left or right. These devices are ANSI A156.32014 rated and considered Grade 1 door hardware.

The AX-PA98EO panic bars are California approved panic bars for glass doors. Accessible rated panic bars can only use a maximum of five pounds of pressure to operate. The Von Duprin AX-PA98EO series panic bars all meet the building standards for accessibility.

Panic bars with Pushpad Armor have a composite accessory on the hinge side of the panic bar pushpad. This provides added support against the wear and tear of high traffic area use. It also provides protection to the pushpad.

This Exit Only With Pushpad Armor function panic bar does not include any trim hardware for the exterior of the door. If installed, it will only allow egress through the door without reentry. Trim must be purchased separately.

This hardware is fire rated and can be used on a fire door.

This Von Duprin series California approved panic bar comes in an oil rubbed bronze finish.
