Stanley Precision Power Supply Without Modules ELR150 PHI


Availability: In stock


Related Products

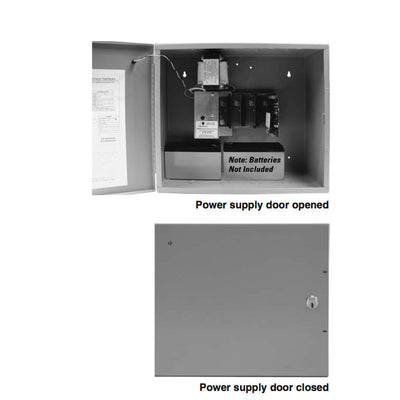

The Stanley Precision Power Supply Without Modules ELR150 PHI is a power supply designed to work with the Stanley Precision 2100 Series of panic bars. This power supply contains a motherboard that can accept up to four plug-in control modules. Each control module controls one Electric Latch Retraction device (ELR for short). It also includes a time delay feature of 0-4 minutes for the latch retraction based on response to a momentary input. This controller should be mounted to a wall to keep out of the way. The power supply comes in a keyed cabinet for safety and security. This power supply does not come with any modules. SPECIFICATIONS
  • UL Listed for Class II Output.
  • UL 294 - Conforms to U.L. 294 Standards incorporating enhanced Access Control communication capabilities.
  • Circuit breakers provide protection for Motherboard
  • 115 or 230 Volt user selectable switch.
  • A.C.Input=115Voltsat1Amp.
  • Battery Back-up/Power Tap available.
  • LED Indicator-Provides clear indication that power is available to the supply.
  • Keyed Cabinet-To maintain safety and security, each Power Supply is equipped with a preinstalled key-cylinder.
  • Includes lockable box with keylock.
  • Dimensions:16" W x14" H x6" D.
  • Weight: 15lbs.
The Stanley Precision Power Supply Without Modules ELR150 PHI does not come in a specific color.
