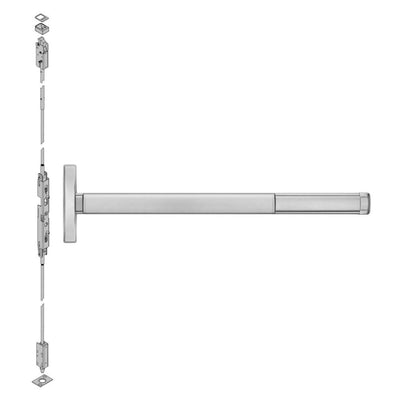

Stanley Precision Apex Panic Bar 2603 Narrow Stile Concealed Vertical Rod Device
Regular price
Quantity: In Stock
SKU: 2603 630 36 PHI
Best 11B722 Padlock Less Core Brushed Brass Finish
$80.00
Best 11B722 Padlock Less Core Brushed Chrome Finish
$58.00
Best 11B782 Padlock Less Core Brushed Brass Finish
$91.00
Best 11B782 Padlock Less Core Brushed Chrome Finish
$69.00
- Description
The Stanley Precision Apex Panic Bar 2603 Narrow Stile Concealed Vertical Rod Device 2603 630 36 PHI is a rim exit device that goes across the door to allow access out of a room or building in case of an emergency. This exit device is actually reversible, which means that can be installed on doors that swing from the left or the right. This panic bar is 36 inches long, but can be cut down to fit a 30 inch door. Specifications:
- DOORS - For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.
- DEVICE - CoversANSI A115.2(Type161),A115.18cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
- FUNCTIONS - Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the �03� function is furnished standard.
- DOUBLE CYLINDER - Handed, �10� Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19.
- BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
- CHASSIS - Investment Cast Steel, Zinc Dichromated.
- LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
- STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering.
- DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
- TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
- REVERSIBLE - Reversible for all functions and Trims. Standard packaging RHRB.
- UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
- ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
