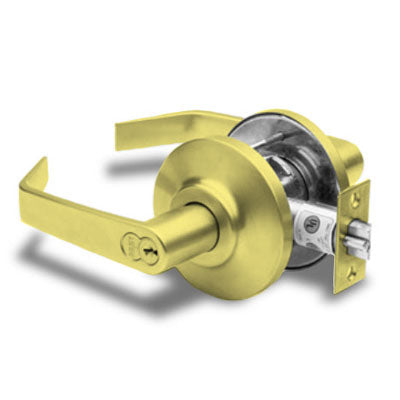

Stanley Best Locks 7KC Lockset Storeroom Function Brass Finish 7KC37D15DS3605
Quantity: In Stock
SKU: 7KC37D15DS3605
Best 11B722 Padlock Less Core Brushed Brass Finish
Best 11B722 Padlock Less Core Brushed Chrome Finish
Best 11B782 Padlock Less Core Brushed Brass Finish
Best 11B782 Padlock Less Core Brushed Chrome Finish
- Description
The Stanley Best Locks 7KC Lockset Storeroom Function Brass Finish 7KC37D15DS3605 is a lever handled lockset designed for commercial buildings such as offices. This cylindrical lockset is a storeroom function. The door cannot be unlocked. It can be opened from the outside by using a key. The inside lever is always unlocked, allowing access out through the door. This is best used on a door to a storage room. This lockset is prepped for a 6-7 pin small format interchangeable core, but does not come with a core. This lock comes with a 2 3/4 inch backset. Standard lock is less core, but you have the option to choose keyway and core as needed. SPECIFICATIONS
- Backset - 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
- Interchangeable Core - Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch - 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
- Lever - 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
- Material - Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.Â
- Mounting - 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
- Rose - D- 3 1/2" diameter mounting screws concealed.
- Strike - STK (standard) - 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3- 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
- Door thickness - 1 3/8" to 2"
