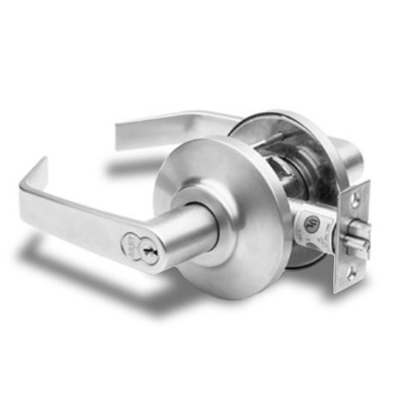

Stanley Best 7KC Locks Lockset Entrance Function 7KC37AB15DS3626

Stanley Best 7KC37AB15DS3626 Lockset Entrance Function

The Stanley Best 7KC Locks Lockset Entrance Function 7KC37AB15DS3626 is a lever handled lockset designed for commercial buildings such as offices. This cylindrical lockset is a entrance function. The door can be unlocked by key from the outside. There is a turn button on the inside that can also lock the door. The inside lever is always unlocked, allowing access out through the door. This is best used for doors inside of a building that are an entrance for a grouped section of rooms such as an office suite. This lockset is prepped for a 6-7 pin small format interchangeable core, but does not come with a core. This lock comes with a 2 3/4 inch backset. Standard lock is less core, but you have the option to choose keyway and core as needed. SPECIFICATIONS

• Backset - 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Interchangeable Core - Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch - 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever - 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material - Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting - 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose - D- 3 1/2" diameter mounting screws concealed.
• Strike - STK (standard) - 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3- 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness - 1 3/8" to 2"
