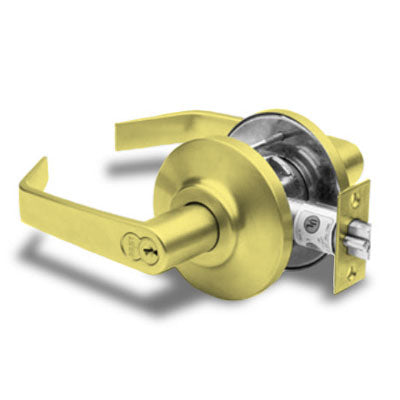

Stanley Best 7K Series Lockset Privacy Function 7KC30L15DS3605 Bright Brass

$186.00

Availability: In stock

SKU: 1 1 undefined

Related Products

The Stanley Best 7K Series Lockset Privacy Function 7KC30L15DS3605 is a lever handled lockset designed for commercial buildings such as offices. This cylindrical lockset is a privacy function. The outer handle can only be locked from the inside of the room by pressing the button on the inside handle. The door can be unlocked by either rotating the inside handle or by rotating the outside slotted button. This is best used for personal offices and conference rooms within a building. This lock comes with a 2 3/4 inch backset. Standard lock is less core, but you have the option to choose keyway and core as needed. SPECIFICATIONS
  • Backset - 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
  • Interchangeable Core ��� Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
  • Latch - 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
  • Lever - 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
  • Material - Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
  • Mounting - 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
  • Rose - D- 3 1/2" diameter mounting screws concealed.
  • Strike - STK (standard) ��� 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3��� 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
  • Door thickness - 1 3/8" to 2"
The Stanley Best 7K Series Lockset Privacy Function 7KC30L15DS3605 comes in a bright brass finish.
