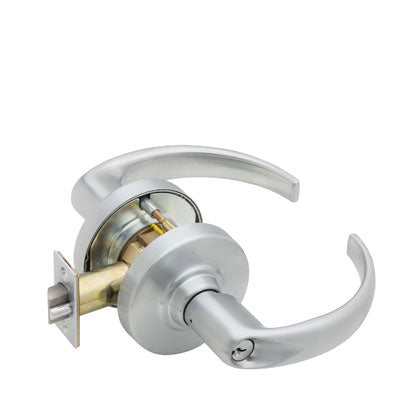

Schlage ND Series Sparta Design Lever Lock is a handleset lock that can be used as the handle of a door. An entrance function lock can be locked and unlocked from the inside by a pushbutton or turn button. It will remain locked until manually unlocked by key from the outside This lockset comes with a standard cylinder. Comes in a brushed chrome finish. Specifications Handing:
All ND-Series lever locksets are non-handed.
1 5/8" to 2 1/8" (41mm_54mm) standard including Vandlgard åÊfunctions.
1 3/4" - 2" for function ND85. See accessories for spacers required for 1 3/8" doors.
2 3/4" (70 mm) standard. 2 3/8", 3 3/4"åÊand 5" (60 mm, 95 mm, 127 mm) optional.
Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57mm) square corner, beveled.
Zinc plated for corrosion resistance.
Steel, 1/2" (12mm) throw, deadlocking on keyed and exterior functions.
3/4" (19 mm) throw anti-friction latch available for pairs of fire doors.
Levers: Pressure cast zinc, plated to match finish symbols.
Roses: Brass, bronze or zinc.
ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard.
Cylinder & Keys:
6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements. Meets A117.1 Accessibility Code.
Meets FF-H-106C Series 161.
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2" (64mm) returns comply; Schlage levers return to within 1/2" of door face.
All electrified locking (fail-safe, unlocked by switch or power failures) functions accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E).
All levers with less than 1/2" (64mm) returns comply with California Fire Safety Codes.
Florida Building Commission:
3/4" and 1/2" throw latch approved for Hurricane Resistance with Miami-Dade County, Florida.
UL / cUL:
All locks listed for A label single doors, 4" x 8". Letter F and UL symbol.
Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
The Schlage Sparta Design Lever Lock will fit most 3' to 4' wide doors. This is a Sparta design handleset.
