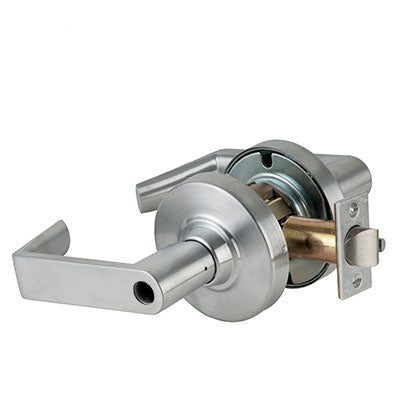

Schlage ND53LD RHO US26D Schlage ND Series Rhodes Lever Lock Less Cylinder US Finishes

Regular price

Quantity: In Stock

SKU: ND53LD RHO US26D

Choose from the following options:

Qty:
ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$21.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$195.00

ShurLok SL100 Numeric Code Blue LockBox ShurLok SL100 Numeric Code Blue LockBox

ShurLok SL100 Numeric Code Blue LockBox

$21.00

Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$76.00

  • Description
Schlage ND Series Rhodes Design Lever Lock is a handleset lock that can be used as the handle of a door. An entrance function lock can be locked and unlocked from the inside by a pushbutton or turn button. It will remain locked until manually unlocked by key from the outside This lockset comes with a standard cylinder. Comes in a brushed chrome finish. Specifications
Handing:
  • All ND-Series lever locksets are non-handed.
Door Thickness:
  • 1 5/8" to 2 1/8" (41mm_54mm) standard including Vandlgard functions.
  • 1 3/4" - 2" for function ND85. See accessories for spacers required for 1 3/8" doors.
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8", 3 3/4"åÊand 5" (60 mm, 95 mm, 127 mm) optional.
Faceplate:
  • Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57mm) square corner, beveled.
Lock Chassis:
  • Zinc plated for corrosion resistance.
Latch Bolt:
  • Steel, 1/2" (12mm) throw, deadlocking on keyed and exterior functions.
  • 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors.
Exposed Trim:
  • Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
Strike:
  • ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard.
Cylinder & Keys:
  • 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
Keying Options:
  • Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Certifications
ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C Series 161.
California State Reference Code:
  • (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2" (64mm) returns comply; Schlage levers return to within 1/2" of door face.
MEA Certification:
  • All electrified locking (fail-safe, unlocked by switch or power failures) functions accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E).
  • All levers with less than 1/2" (64mm) returns comply with California Fire Safety Codes.
Florida Building Commission:
  • 3/4" and 1/2" throw latch approved for Hurricane Resistance with Miami-Dade County, Florida.
UL / cUL:
  • All locks listed for A label single doors, 4" x 8". Letter F and UL symbol.
ADA Compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
TheSchlage ND Rhodes Design Lever Lock̴Ì_will fit most 3' to 4' wide doors. This is a Rhodes design handle set.
