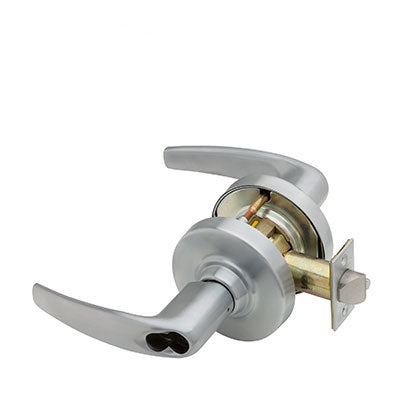

Schlage ND53JD ATH US26D ND Series Athens Lever Lock Accepts LFIC Less Core US Finishes

Quantity: In Stock

SKU: ND53JD ATH US26D

Choose from the following options:

Qty:

Related Products

ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$19.50

Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$74.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$173.00

Cal Royal ESC2200 Rigid Lever Panic Bar Trim Cal Royal ESC2200 Rigid Lever Panic Bar Trim

Cal Royal ESC2200 Rigid Lever Panic Bar Trim

$135.00

  • Description
Schlage ND Series Athens Design Lever Lock is a handleset lock that can be used as the handle of a door. An entrance function lock can be locked and unlocked from the inside by a pushbutton or turn button. It will remain locked until manually unlocked by key from the outside This lockset comes with a standard cylinder. Comes in a brushed chrome finish. Specifications
Handing:
  • All ND-Series lever locksets are non-handed.
Door Thickness:
  • 1 5/8" to 2 1/8" (41mm_54mm) standard including Vandlgard functions.
  • 1 3/4" - 2" for function ND85. See accessories for spacers required for 1 3/8" doors.
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8", 3 3/4"åÊand 5" (60 mm, 95 mm, 127 mm) optional.
Faceplate:
  • Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57mm) square corner, beveled.
Lock Chassis:
  • Zinc plated for corrosion resistance.
Latch Bolt:
  • Steel, 1/2" (12mm) throw, deadlocking on keyed and exterior functions.
  • 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors.
Exposed Trim:
  • Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
Strike:
  • ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard.
Cylinder & Keys:
  • 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
Keying Options:
  • Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Certifications
ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C Series 161.
California State Reference Code:
  • (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2" (64mm) returns comply; Schlage levers return to within 1/2" of door face.
MEA Certification:
  • All electrified locking (fail-safe, unlocked by switch or power failures) functions accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E).
  • All levers with less than 1/2" (64mm) returns comply with California Fire Safety Codes.
Florida Building Commission:
  • 3/4" and 1/2" throw latch approved for Hurricane Resistance with Miami-Dade County, Florida.
UL / cUL:
  • All locks listed for A label single doors, 4" x 8". Letter F and UL symbol.
ADA Compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
TheSchlage ND Athens Design Lever Lock will fit most 3' to 4' wide doors. This is an Athens design handle set.
