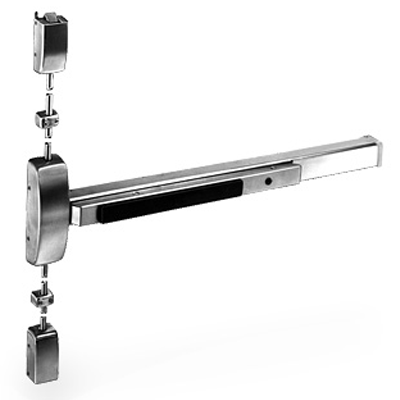

Sargent HC8700 Hurricane Rated Surface Vertical Rod Panic Exit Hardware

Regular price

Quantity: In Stock

SKU: HC8710F LHR 32D

Choose from the following options:

Qty:
Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$61.00

Stanley Best Key Blanks Stanley Best Key Blanks

Stanley Best Key Blanks

$2.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$144.00

Cal Royal ESC2200 Rigid Lever Panic Bar Trim Cal Royal ESC2200 Rigid Lever Panic Bar Trim

Cal Royal ESC2200 Rigid Lever Panic Bar Trim

$104.00

  • Description
Specifications
  • Frames - 16 gauge KD, Pipe spacer anchors only, 12 gauge full sleeve reinforcing and existing opening anchor in head of frame
  • For Doors - 8'0" x 8'0" (2438mm x 2438mm) 16 gauge 747 flush, S edge
  • Weatherstrip/Threshold - Testing and approved; Pemko S88 on head & jamb; Pemko 2005AS as threshold
  • Hinges - MCKINNEY TA2714 or T2714
  • Latch Bolt: Stainless Steel
  • Hardware Configuration 1 - SARGENT HC8700 or 12-HC8700 Exit Devices on both leaves - Pairs of Doors, Dade County Acceptance #02,0924.04
  • SARGENT 8200 Series Mortise Lock (active), SARGENT HC8700 or 12-HC8700 exit devices (inactive), Ives 360 surface bolts at 5-3/4" (147mm) at centerline - Pairs of Doors with 8200 Series Mortise Lock, Dade County Acceptance #02, 0924.04
  • Strikes - 654 top bolt in frame with larger mounting screws for both top and bottom cases. 655 bottom strike furnished standard
  • Electric Options: AL-, PL-, BT-, TL-, 53-, 54-, 55-, 56-, 57-, 58-, 59-
  • Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
  • Device Centerline from Finished Floor: 41” (1041 mm)
  • Door/Opening Height: Must be specified- 96" (2438mm) Max Door Opening; 84" (213mm)  Standard for Turboship
  • Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
  • Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
