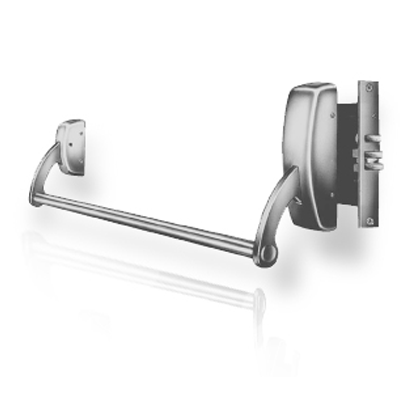

Sargent 9900 Mortise Lock Emergency Exit Device

Regular price

Quantity: In Stock

SKU: 9910 LHR 32D

Choose from the following options:

Qty:
Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$61.00

Stanley Best Key Blanks Stanley Best Key Blanks

Stanley Best Key Blanks

$2.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$144.00

Cal Royal ESC2200 Rigid Lever Panic Bar Trim Cal Royal ESC2200 Rigid Lever Panic Bar Trim

Cal Royal ESC2200 Rigid Lever Panic Bar Trim

$104.00

  • Description
The 9900 combines the safety of an emergency exit panic bar with the security of a mortise lock. Features
  • All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog
  • Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
  • Trim is thru bolted
  • All fire exit hardware for hollow metal door applications listed up to 3 hours (A label) (Double Doors require astragal)
  • All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
  • All crossbar assemblies or brass, bronze or stainless steel (see specific device)
  • Stainless steel springs throughout
  • Simple lever principle with push type action
  • All exit devices meet ANSI A156.3 Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards
Specifications
  • For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. Other door thickness, consult factory. 4-1/2" (114mm) minimum stile
  • Mounting: Supplied standard with wood and machine screws. Thru bolts available on order
  • Chassis Cover: Brass, bronze or stainless steel
  • Chassis: Nonferrous alloy
  • Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
  • Hand: Handed, please specify when ordering
  • Mortise Lock: 900 Series Mortise Lock, non-reversible
  • Dogging: Standard Allen key dogging
  • Strike: C908 standard
