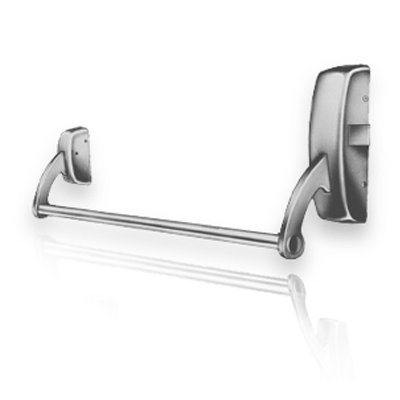

Sargent 9898 Reversible Rim Exit Device


Availability: In stock

SKU: 9898 32D

Related Products

This particular panic bar has an extra feature in it being reversible. This means that it can actually be installed on either a left or right swinging door without having to specify which you have at the time of your order. One less thing for you to worry about. Features
  • Simple lever principle with push type action
  • Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
  • All fire exit hardware for hollow metal door applications listed up to 3 hours
  • All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
  • All crossbar assemblies or brass, bronze or stainless steel (see specific device)
  • Stainless steel springs throughout
  • Trim is thru bolted and non-handed
  • All exit devices meet ANSI A156.3 Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards
  • (A label) (Double Doors require astragal)
  • All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog
  • For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 4-1/8" (105mm) minimum stile
  • Mounting: Supplied standard with wood and machine screws. Thru bolts available on order
  • Chassis: Nonferrous alloy
  • Chassis Cover: Brass, bronze or stainless steel
  • Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
  • Hand: Non-handed
  • Dogging: Standard Allen key dogging
  • Strike: 649 standard
