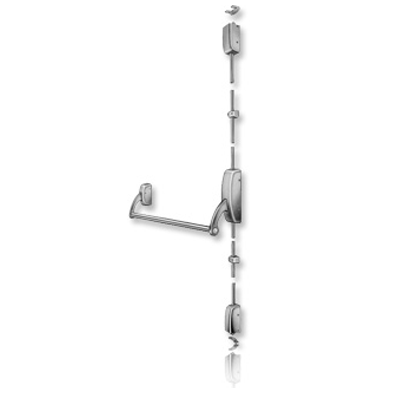

Sargent 9700 Surface Vertical Rod Panic Bar
Regular price
Quantity: In Stock
SKU: 9710 LHR 32D
Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock
$31.10
ShurLok SL300 Numeric Code Brick Red LockBox
$21.00
Cal Royal 2200 Panic Bar
$195.00
ShurLok SL100 Numeric Code Blue LockBox
$21.00
- Description
The 9700 panic bar keeps the classic look of a panic bar while still maintaining today's fire and safety codes. Features
- Stainless steel springs throughout
- Simple lever principle with push type action
- Trim is thru bolted
- Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
- All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
- All crossbar assemblies or brass, bronze or stainless steel (see specific device)
- All exit devices meet ANSI A156.3 Grade 1
- UL Listed
- UL Listed to Canadian safety standards
- All fire exit hardware for hollow metal door applications listed up to 3 hours
(A label) (Double Doors require astragal) - All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog
- Hand: Non Handed
- For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 3" (76mm) minimum stile. Maximum door height 96"
- Mounting: Supplied standard with wood and machine screws. Thru bolts available on order
- Chassis Cover: Brass, bronze or stainless steel
- Chassis: Nonferrous alloy
- Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
- Dogging: Standard Allen key dogging
- Strike: 646 top strike and 624 bottom strike standard
- Opening Height: 84" (2134mm) standard
