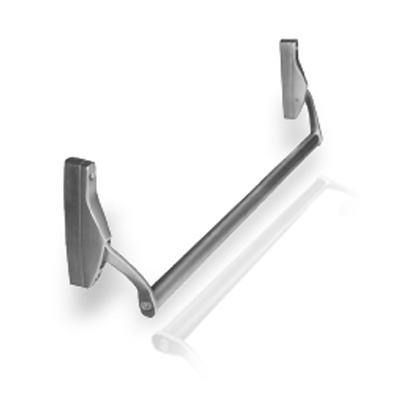

Sargent 9400 Narrow Style Concealed Vertical Rod Panic Exit Bar

Quantity: In Stock

SKU: 9410 LHR 32D

Choose from the following options:

Qty:

Related Products

ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$21.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$195.00

ShurLok SL100 Numeric Code Blue LockBox ShurLok SL100 Numeric Code Blue LockBox

ShurLok SL100 Numeric Code Blue LockBox

$21.00

Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$76.00

  • Description
With the classic cross bar look, the 9400 from Sargent has been added to the line to offer concealed vertical rod panic bars for this style of bar. Features
  • Trim is thru bolted
  • Stainless steel springs throughout
  • All fire exit hardware for hollow metal door applications listed up to 3 hours
    (A label) (Double Doors require astragal)
  • Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
  • See options/prefixes for keying options
  • All crossbar assemblies or brass, bronze or stainless steel (see specific device)
  • Simple lever principle with push type action
  • All exit devices meet ANSI A156.3 Grade 1; A117.1 Accessibility Code
  • UL Listed
  • UL Listed to Canadian safety standards
Specifications
  • Warranty: 1 year limited
  • For Metal Doors: 1-3/4" (44.5mm) thickness only. Requires proper reinforcements
  • Projection: 4-7/8"; 3-1/8" depressed
  • Mounting: Supplied standard machine screws. Through-bolting and no bottom rod available, special order
  • Chassis Cover: Brass, bronze or stainless steel
  • Chassis: Nonferrous alloy
  • Crossbar: 13/16" x 1-3/8" oval seamless tubing; standard length for doors up to 36"; crossbar available for doors 36-1/2" to 48"
  • Hand: Field Reversible. Order as RHRB or LHRB
  • Dogging: Standard Allen key dogging, Less dogging available, special order
  • Strikes: 94-2390 top strike pack; 94-2391 bottom strike pack
  • Rod: 3/8" solid steel (top); 1/2" steel tubing; Rods for doors 8'6" standard; Rods for doors 8'6" to 10'8" optional
  • Trim: Night Latch Cylinder Retainer with 04 function; 862, 863, 864 pulls available separately
  • Opening Height: 8'6" standard to 10'8" optional
  • Stile Width: 2-1/8" minimum with 1/2" stop, single door; 1-3/4", pair of doors
  • Backset: 1-3/8" on single door with 3/8" stop; 1" on pair of doors without mullion
  • Cylinder: 41 Mortise cylinder; supplied with 9404/12-9404 only; Cylinder Kit includes: Cylinder, Night Latch Cylinder Retainer and mounting screws
