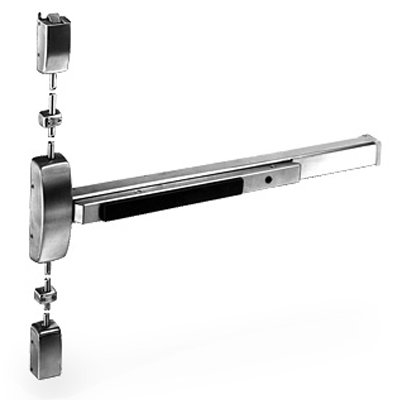

Sargent 8700 Surface Vertical Rod Exit Device

Quantity: In Stock

SKU: 8710F LHR 32D

Choose from the following options:

Qty:

Related Products

ShurLok SL300 Numeric Code Brick Red LockBox ShurLok SL300 Numeric Code Brick Red LockBox

ShurLok SL300 Numeric Code Brick Red LockBox

$21.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$195.00

ShurLok SL100 Numeric Code Blue LockBox ShurLok SL100 Numeric Code Blue LockBox

ShurLok SL100 Numeric Code Blue LockBox

$21.00

Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$76.00

  • Description
Features
  • Rods are 1/2" (13mm) brass, bronze or stainless steel
  • Devices are ANSI A156.3 - 2001 Grade 1
  • Standard bottom latch compatible with latchtrack thresholds (by others)
  • Two point latching (top and bottom of door)
  • Top & bottom latchbolt projection adjustable through center case
  • Single and double door applications
  • UL Fire and Panic listed
Specifications
  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
  • Door Widths:
    E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door;
    F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
    J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door;
    G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
  • Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
  • Strike: 649 Top Strike (Panic and Fire Rated)
  • Optional Strikes: 624 Bottom Strike; 655 Fire Rated Bottom Strike
  • Electric Options: AL-, PL-, BT-, TL-, 53-, 54-, 55-, 56-, 57-, 58-, 59-
  • Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
  • Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
  • Latch Bolt: Brass, Stainless Steel
  • Dead Latch: Brass, sliding type
  • Device Centerline from Finished Floor: 41” (1041 mm)
  • Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
