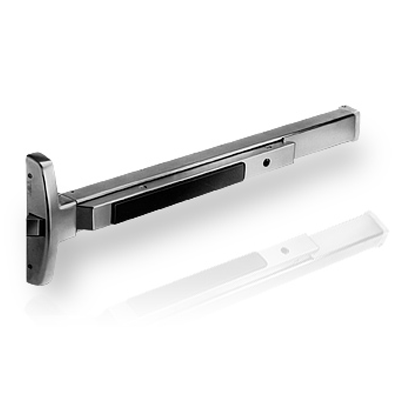

Sargent 8500 Narrow Design Panic Bar
Regular price
Quantity: In Stock
SKU: 8510F 32D
ShurLok SL300 Numeric Code Brick Red LockBox
$21.00
Cal Royal 2200 Panic Bar
$195.00
Padlocks 4 Less FJM SPSA80 3 1/8" Container Lock
$31.10
ShurLok SL100 Numeric Code Blue LockBox
$21.00
- Description
The 8500 Panic Bar from Sargent is a narrow style exit device. With a rim bolt, it operates quietly for you. Features
- Single point rim latching device
- Quiet operation and solid security
- Designed for narrow stile applications such as aluminum frame full glass doors
- Single and double doors with mullion
- Devices are ANSI A156.3 - 2001 Grade 1 Panic listed
- Door Widths:
E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door;
F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door;
G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door - Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- Prefix 1-3/4" (44mm) minimum stile
- Strike: 657 Standard Black Nylon Coated
- Optional Strikes: 649, 658 Standard with 650A Mullion
- Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
- Electric Options: AL-, PL-, BT-, TL-, 53-, 54-, 55-, 56-, 57-, 58-, 59-
- Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
- Device Centerline from Finished Floor: 41” (1041 mm)
- Latch Bolt: Stainless steel, 3/4" (19mm) throw
- Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)
- Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
