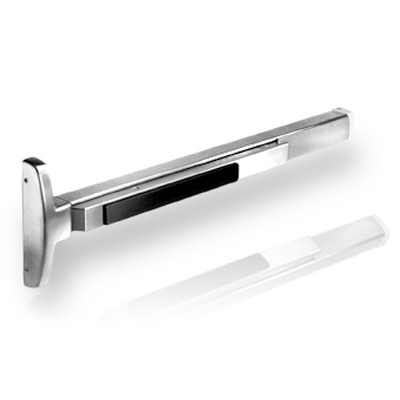

Sargent 8400 Concealed Vertical Rod Narrow Style Panic Bar

Regular price

Quantity: In Stock

SKU: MD8410F 32D LHR

Choose from the following options:

Qty:
Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$61.00

Stanley Best Key Blanks Stanley Best Key Blanks

Stanley Best Key Blanks

$2.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$144.00

Cal Royal ESC2200 Rigid Lever Panic Bar Trim Cal Royal ESC2200 Rigid Lever Panic Bar Trim

Cal Royal ESC2200 Rigid Lever Panic Bar Trim

$104.00

  • Description
Features
  • UL Fire and Panic listed
  • NB- Device allows free access for wheelchairs and carts. No bottom strike eliminates tripping potential
  • NB- Device eliminates marred floors from dragging bottom bolts when rods are not adjusted correctly
  • All functions determined by outside trim
  • Devices are ANSI A156.3 - 2001 Grade 1
Specifications
  • Door Types: Hollow metal or extruded aluminum. 1-3/4"(44mm) minimum thickness; 1-3/4"(44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square
  • Door Widths:
    E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door;
    F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
    J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door;
    G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
  • Strike: 650 Top Strike & 606 Bottom Strike (Panic & Fire Rated)
  • Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
  • Electric Options: AL-, PL-, BT-, TL-, 53-, 54-, 55-, 56-, 57-, 58-, 59-
  • Mounting Fasteners: Supplied standard with machine screws
  • Top bolt: Stainless Steel
  • Device Centerline from Finished Floor: 41” (1041 mm)
  • Door/Opening Height: Must be specified - 120" (3048mm) Max Door Opening; 84" (2133mm) Standard for Turboship
  • Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
  • Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
