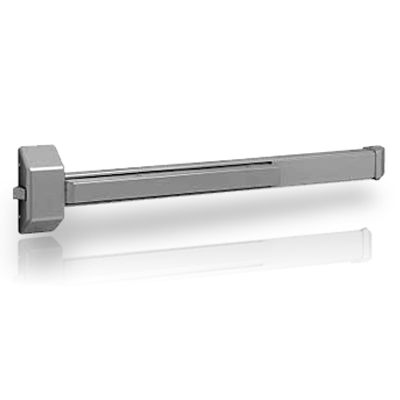

Sargent 3828 Rim Exit Device

$297.00

Availability: In stock

SKU: 3828F EN

Choose from the following options:

Related Products

Features
  • UL Listed
  • Available in four different functions
  • Chassis mounted unit construction assures easy installation and maintenance
  • Tapered push rail and angled covers
  • Steel endcaps and covers
  • UL Listed to Canadian safety standards
  • Available as Fire Exit Hardware (12-)
Specifications
  • For Doors: 1-3/4" (44.5mm) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door applications using standard 641 strike
  • Outside Trim: GTB, HTB, OB, LB, LL, LP or TP trim available
  • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
  • Chassis: Nonferrous alloy
  • Cover: Nonferrous alloy
  • Rail Assembly: Roll formed steel
  • Hand: Non-handed
  • Latchbolt: Stainless steel 3/4" (19mm) throw
  • Strike: 641 packed standard
  • Dogging Feature: Allen-type key furnished standard
  • Finish: PEB, PED, PEN, PEAB
