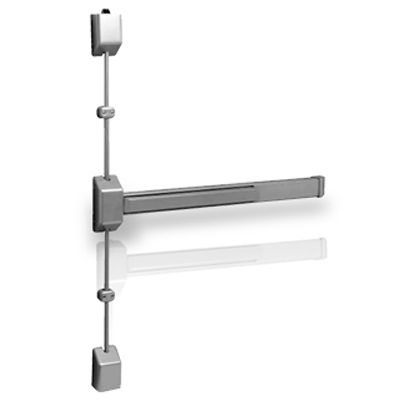

Sargent 3727 Surface Mounted Vertical Rod Panic Bar

Regular price

Quantity: In Stock

SKU: 3727F EN

Choose from the following options:

Qty:
Cal Royal SL Grade 2 Pioneer Lever Lock Cal Royal SL Grade 2 Pioneer Lever Lock

Cal Royal SL Grade 2 Pioneer Lever Lock

$61.00

Stanley Best Key Blanks Stanley Best Key Blanks

Stanley Best Key Blanks

$2.00

Cal Royal ESC2200 Rigid Lever Panic Bar Trim Cal Royal ESC2200 Rigid Lever Panic Bar Trim

Cal Royal ESC2200 Rigid Lever Panic Bar Trim

$104.00

Cal Royal 2200 Panic Bar Cal Royal 2200 Panic Bar

Cal Royal 2200 Panic Bar

$144.00

  • Description
Features
  • Available in four different functions
  • Tapered push rail and angled covers
  • UL Listed to Canadian safety standards
  • Chassis mounted unit construction assures easy installation and maintenance
  • Steel endcaps and covers
  • UL Listed
  • Available as Fire Exit Hardware (12-)
Specifications
  • Outside Trim: GTB, OB, LB, LL, LP or TP trim available
  • Chassis: Nonferrous alloy
  • For Doors: 1-3/4" (44.5mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door applications. 3-1/2" (89mm) minimum stile width required for double door application
  • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
  • Rail Assembly: Roll formed steel
  • Cover: Nonferrous alloy
  • Hand: Reversible. Device is packed standard LHRB
  • Latchbolt: Brass
  • Strikes: Top 629, Bottom 624
  • Dogging Feature: Allen-type key furnished standard
  • Finish: PEB, PED, PEN, PEAB
