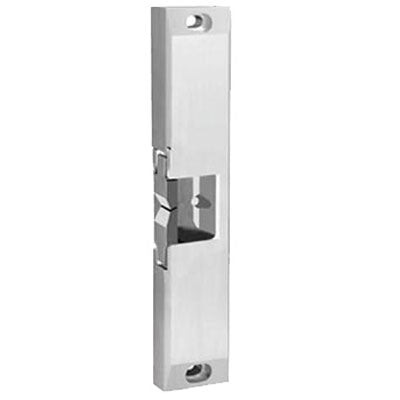

The Hes 9600 electric strike is designed to work with the rim panic bar devices. Surface mounted and easy to install. No cut out required 3/4" thick housing 12 or 24 VDC can be set in the field at time of installation.

Specifications

•  UL1034 burglary-resistant rated
• ANSI/BHMA, 156.31 Grade 1 (#E09731, #E09732)
• Patented design

Standard Features

•  Completely surface mounted
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
•  Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4" pullman latch
• Five year limited warranty

Electrical

•  .45 Amps @ 12VDC
• .25 Amps @ 24VDC

Frame application

•  Steel
• Aluminum*
• Wood

Optional Features

•  LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor

Accessories

•  9500/9600 108 - Spacer plate
• 154 - MTK Metal Template Kit
• 2001 - Plug-in bridge rectifier
• 2004 - ElectroLynx adapter
• 2005 - SMART Pac II
• 2006P - Plug-in buzzer
• 2009P - Plug-in LED

Finishes

• 630 Satin stainless steel
• 605 Bright brass
• 606 Satin brass
• 612 Satin bronze
• 613 Bronze toned
• 651 Polished chrome
