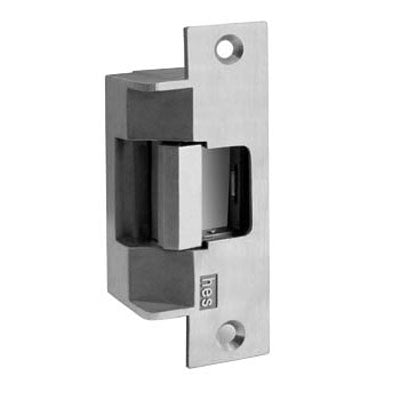

Hes 7500 12V Electric Strike

$379.00

Availability: In stock

SKU: 7500 12V

Choose from the following options:

Related Products

The 7500 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The solenoid is internally mounted for compactness, making the 7500 series electric strikes easy to install in hollow metal, concrete filled metal, wood and aluminum jambs.

Specifications:

  • UL 10C, 3 hour fire rated (fail secure only)
  • UL 1034, burglary resistant listed
  • ANSI/BHMA 156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • MEA New York City accepted
  • UBC-7-2-94 Uniform Building Code
  • Patented Design
Standard Features:
  • Stainless Steel Construction
  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic Strength 70 ft-lbs
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Accomodates up to 30 lbs pre-load
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim Enhancer
