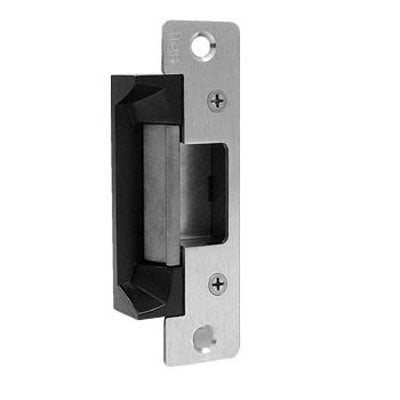

Hes 5200 Electric Strike

$114.00

Availability: In stock

SKU: 5200

Related Products

Designed with the installer in mind, the 5200 series raises the standard in adaptability for electric strikes. Offering features such as an all new innovative approach to in-frame horizontal adjustability, the electric strike is the perfect fit for multiple applications. The field selectable fail secure/fail safe unit is easy to install and accommodates 3/4" latchbolts.

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance rating 500,000 cycles
  • Field selectable fail secure/fail safe
  • Dual Voltage 12 or 24 VAC/VDC
  • In-frame horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 5/8" - 3/4" latchbolt (with 1/8" door gap)
  • Strike body depth 1-3/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year warranty
Optional Features
  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor
Specifications
  • UL 1034, burglary-resistant listed
  • ANSI/BHMA 156.31, Grade 1
  • MEA New York City accepted
  • Patented design
Electrical
  • .24 Amps @ 12VDC
  • .12 Amps @ 24VDC
  • DC Continuous Duty/AC Intermittent Duty
Frame application
  • Steel
  • Aluminum
  • Wood
Accessories
  • 5200-500 Filler block for retro-fit applications
  • 154 - MTK Metal template kit
  • 2001 - Plug-in bridge rectifier
  • 2004 - ElectroLynx adapter
  • 2005 - SMART Pac II
  • 2006P - Plug-in buzzer
  • 2009P - Plug-in LED
  • Four "press fit" stackable lip extensions
Finishes
  • 630 Satin stainless steel
  • 313 Brown anodized
  • 605 Bright brass
  • 606 Satin brass
  • 612 Satin bronze
  • 613 Bronze toned
  • 628 Silver
  • 629 Bright stainless steel
  • BLK Black

Faceplate Options

  • 501 _ For use with cylindrical locksets in ANSI metal jambs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 501A - For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 501B - For use with cylindrical locksets. Includes universal mounting tabs. Aluminum doors and frames with radiused front. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 502 - For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 503 - For use with cylindrical locksets. Includes universal mounting tabs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 503B - For use with cylindrical locksets. Faceplate is beveled. Includes universal mounting tabs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 504 - For use with cylindrical locksets. Four point mounting for wood installations. ANSI/BHMA Numbers: #E09321, #E09322, #E09323 Try using the Falcon W511 Dane 626 Lever Lockset with this electric strike.
