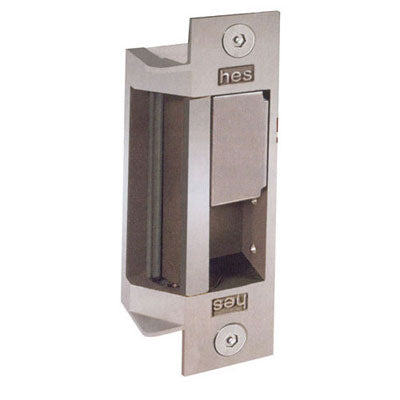

Hes 4500C Electric Strike

Regular price

Quantity: In Stock

SKU: 4500C

Choose from the following options:

Qty:
Best 11B722 Padlock Less Core Brushed Brass Finish Best 11B722 Padlock Less Core Brushed Brass Finish

Best 11B722 Padlock Less Core Brushed Brass Finish

$68.00

Best 11B722 Padlock Less Core Brushed Chrome Finish Best 11B722 Padlock Less Core Brushed Chrome Finish

Best 11B722 Padlock Less Core Brushed Chrome Finish

$54.00

Best 11B782 Padlock Less Core Brushed Brass Finish Best 11B782 Padlock Less Core Brushed Brass Finish

Best 11B782 Padlock Less Core Brushed Brass Finish

$77.00

Best 11B782 Padlock Less Core Brushed Chrome Finish Best 11B782 Padlock Less Core Brushed Chrome Finish

Best 11B782 Padlock Less Core Brushed Chrome Finish

$59.00

  • Description

The 4500C Electric Strike by Hes is the first electric strike designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. Like the popular Hes 5000 Strike , this electric strike features a low profile 1-3/8" depth, heavy-duty cast stainless steel construction and horizontal adjustment for simple installation. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. Designed for use with cylindrical and mortise locksets up to a 3/4" throw.

Specifications

  • WHI fire door listed
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • UL 10C 3 hour fire-rated (fail secure only)
  • California Fire Marshall Listed
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL 1034 burglary-resistant listed
  • UBC-7-2-94 Uniform Building Code
  • Patented Design
  • ANSI/BHMA 156.31, Grade 1(#E09321, #E09322, #E09323)
Standard Features
  • Stainless steel construction
  • Static strength 3000 lbs
  • Endurance of 500,000 cycles
  • Tamper resistant
  • Dynamic strength 70 ft-lbs
  • Dual Voltage 12 or 24 VAC/VDC
  • Strike body depth 1 3/8"
  • Horizontal adjustment
  • Trim enhancer
  • Accomodates up to a 3/4" latchbolt
  • Non-handed
  • Internally mounted solenoid
  • Plug-in connector
  • Fail Secure (standard)
