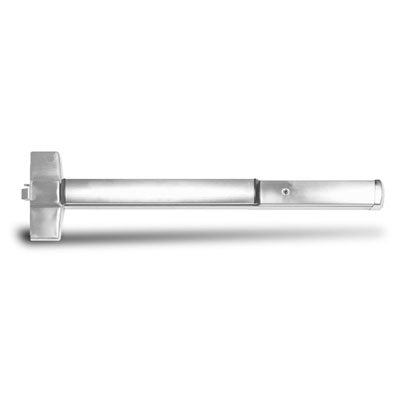

Corbin Russwin 3 Hour Fire Rated Exit Device ED5200A 630
Regular price
Quantity: In Stock
SKU: ED5200A 630
Corbin Russwin Exit Pull Trim P850 689
$58.00
Corbin Russwin Lever Trim Dummy Function N650 626
$217.00
Corbin Russwin Lever Trim Passage Function N610 626
$217.00
- Description
The Corbin Russwin 3 Hour Fire Rated Exit Device ED5200A 630 is a grade 1 panic bar meant for single doors and double doors with a separating mullion. This type of exit device is meant to allow people to exit quickly during times of emergency with simple pressure against the door. A fire rated device cannot be dogged open because it is meant to go on doors that are only fire exits. This device is meant for 36 inch wide doors, but can be cut down to fit doors that are 30 inches wide. Features
- Handing - Standard device is non-handed. Double Cylinder Device is Handed. Lever trim is handed.
- Bar Length - Easily field cut to size. Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
- Door Thickness - 1-3/4" (44mm) standard. Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.
- Stile - Minimum width 4-1/2" (114mm).
- Latchbolt - 3/4" (19mm) throw, stainless steel pullman- type with stainless steel deadlocking latch.
- Materials - Heavy-duty cold-forged steel chassis; heavy- gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.
- Projection - 3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
- Dogging - Standard on panic devices; single-point 1/4 turn hex key dogging. Optional: less dogging, specify M51. Optional: cylinder dogging; specify M52. Optional: electric dogging; specify M97. Mechanical dogging not available on fire- rated devices.
- Fasteners - Standard on panic devices: machine screws and wood door fasteners. Standard on fire- rated devices: sex nuts and bolts. Optional on panic devices: sex nuts and bolts for use on wood, composite, or unreinforced metal doors; specify M54. Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.
