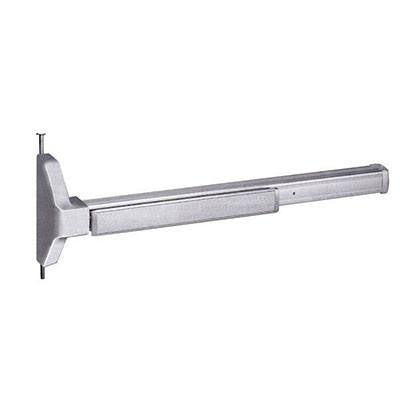

Cal Royal GLSCVR7700 US32D Concealed Vertical Rod Narrow Stile Panic Bar
Regular price
Quantity: In Stock
SKU: GLSCVR7700 US32D
Cal Royal GLSRIM7700 Rim Escutcheon Trim
$197.00
Cal Royal 77GLSNL Night Latch Trim
$117.00
Cal Royal 77GLSUP Pull Trim
$110.00
Cal Royal 77GLSEOP Exit Only Plate Trim
$49.00
- Description
The Cal Royal GLSCRV7700 is a concealed vertical rod panic bar. Like the GLS7700 panic bar, this vertical rod variant is designed for doors with a narrow stile. This is ideal for both single and double doors with large wide glass panes in them. The GLSCVR7700 can be installed on a door with a style as thin sa 1 and 3/4 inches. Also has a dog down feature.
Details:
- Specifications For Doors -- Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application
- Chassis -- Non-ferrous alloy (Panic Grade)
- Cover -- Brass, bronze or stainless steel.
- Mounting -- Furnished with wood and machine screws
- End Cap -- Brass, Bronze or Stainless Steel construction
- Hand -- Handed. Specify RHR or LHR.
- Top and Bottom Bolts -- Stainless steel. Top and bottom bolt travel 7/16" (11mm). Stainless Steel adjustable to 1" (25mm).
- Spring -- Stainless Steel throughout.
- ANSI Standard -- A156.3, Grade 1
- Rail Assembly -- Heavy guage extruded aluminum body with Stainless Steel push pad.
- Strike -- 260 Top and 265 Bootom strikes packed standard
- Dogging Feature -- Allen-type key furnished standard
- Mullion -- Available
- UL and ULC Listed -- GLSCVR7700 Series for Panic and Safety for all types of 4' x 8' single doors and 8' x 8' double doors for Panic and Safety
- Finish -- Architectural plated finishes
