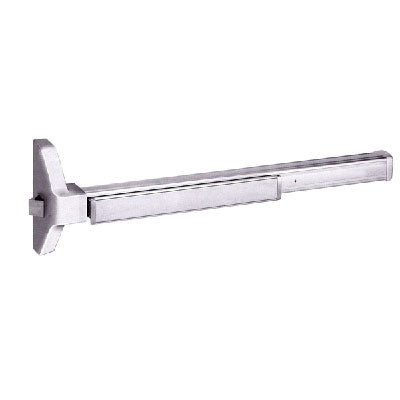

Cal Royal GLS7700EO36 US32D Narrow Stile Panic Bar

Regular price

Quantity: In Stock

SKU: GLS7700EO36 US32D

Choose from the following options:

Qty:
Cal Royal GLSRIM7700 Rim Escutcheon Trim Cal Royal GLSRIM7700 Rim Escutcheon Trim

Cal Royal GLSRIM7700 Rim Escutcheon Trim

$197.00

Cal Royal 77GLSNL Night Latch Trim Cal Royal 77GLSNL Night Latch Trim

Cal Royal 77GLSNL Night Latch Trim

$117.00

Cal Royal 77GLSUP Pull Trim Cal Royal 77GLSUP Pull Trim

Cal Royal 77GLSUP Pull Trim

$110.00

Cal Royal 77GLSEOP Exit Only Plate Trim Cal Royal 77GLSEOP Exit Only Plate Trim

Cal Royal 77GLSEOP Exit Only Plate Trim

$49.00

  • Description
The GLS 7700 series narrow stile panic bar is a designed for both wood and metal doors with large panels. Because of it's design, it can be installed on doors with a stile as narrow as 1 and 3/4 inches. The GLS 7700 can be cut down to fit doors as narrow as 30 inches. This is a grade 1 heavy duty panic bar.
Details:
  • Specifications For Doors -- Wood, Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application
  • Chassis -- Non-ferrous alloy (Panic Grade)
  • Cover -- Brass, Bronze or Stainless Steel
  • Mounting -- Furnished with wood and machine screws. Thrubolts available upon request.
  • End Cap -- Brass, Bronze, or Stainless Steel construction
  • Alarm -- Available. Prefix ALRM before part number.
  • Hand -- Non-handed.
  • Latch Bolt -- Stainless steel 3/4 inch throw.
  • Spring -- Stainless steel throughout
  • ANSI Standard -- A156.3 Grade 1
  • Rail Assembly -- Heavy gauge extruded aluminum body with Stainless Steel push pad.
  • Strike -- 246 packed standard. Optional 247 strike.
  • Dogging Feature -- Allen-type key furnished standard
  • Mullion -- Available
  • UL and ULC Listed -- GLS7700 Series for Panic and Safety for all types of 4' x 8' single doors and 8' x 8' double doors
  • Finish -- Architectural plated finishes
