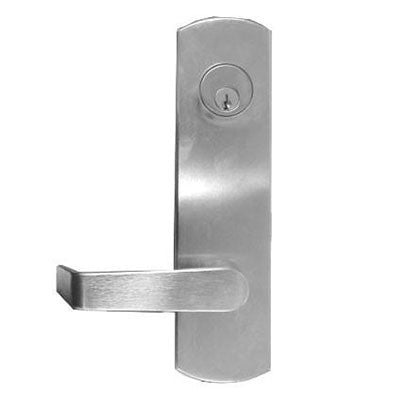

Cal Royal ESC7700 US26D Escutcheon Lever Exit Trim

Regular price

Quantity: In Stock

SKU: ESC7700 US26D

Choose from the following options:

Qty:
Cal Royal 7700 Panic Bar Cal Royal 7700 Panic Bar

Cal Royal 7700 Panic Bar

$489.00

Cal Royal 7760 Vertical Rod Panic Bar Cal Royal 7760 Vertical Rod Panic Bar

Cal Royal 7760 Vertical Rod Panic Bar

$639.00

  • Description
The Cal Royal ESC7700 Escutcheon Lever Exit Trim is a new product from Cal Royal that replaces the ESC9900 Lever Trim. The ESC7700 Lever Trim is an outside trim for the 7700 panic bar. CONSTRUCTION
  • Rigid, non clutch mechanism.
  • Double heavy duty spring support to prevent sagging and enhance operation.
  • Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
  • Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.
This is for doors of a standard width of 1 3/4". ESCUTCHEON DIMENSIONS 2 3/4" width X 10 1/4" length. Lever length: 4 3/4". Fits and covers 2 1/8" 161 cutout.
