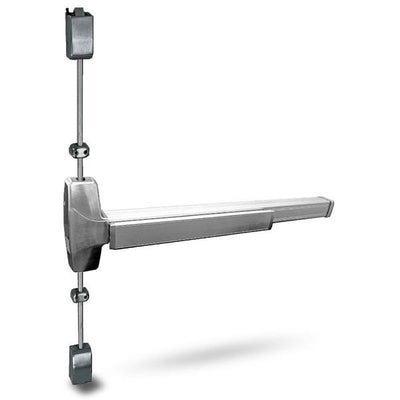

Cal Royal 7760V3684 US32D LHR Vertical Rod Panic Bar

$498.00

Availability: In stock

SKU: 7760V3684 US32D LHR

Choose from the following options:

Related Products

This is one of the newest products from Cal Royal and replaces the discontinued 9960 series panic bar. Specifications For Doors:
  • Chassis................................. Nonferrous alloy (Panic Grade), steel (Fire Grade)
  • Cover.................................... Brass, bronze or stainless steel. Covers stock hollow metal doors with 161 cut out.
  • Mounting...............................Furnished with wood and machine screws. Thru bolts are included and standard packaging on fire rated devices.
  • End Cap............................... Brass, bronze or stainless steel construction.
  • Hand.....................................Easily field reversible. Specify at time of order LHRB, RHRB for convenience.
  • Latch Bolt, Spring................Stainless steel.
  • ANSI Standard.....................A156.3, Grade 1.
  • Rail Assembly...................... Heavy gauge extruded aluminum body with stainless steel push pad.
  • Alarm....................................Available.
  • UL and ULC Listed..............7760 Series for panic. F7760 Series for fire exit hardware for all types of 8Ì_Ì_å¢Ì_Ì__ x 8Ì_Ì_å¢Ì_Ì__ double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1777 codes.
  • Dogging Feature..................Allen-type key furnished standard on non-fire labeled devices.
  • Finish....................................Architectural plated finishes.
MODEL 7700EO36, F7700EO36, 7790V3696, F7790V3696 and 7750V36120 7700EO48, F7700EO48, 7790V4896, F7790V4896 and 7750V48120 1 3/4Ì_Ì_å¢Ì_Ì__ thick standard optional 2 14Ì_Ì_å¢Ì_Ì__ thick. 3 3/4Ì_Ì_å¢Ì_Ì__ minimum stile width required for single door application. 3 1/2Ì_Ì_å¢Ì_Ì__ minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available.
