Cal Royal CRPT-10C AL Concealed Power Transfer

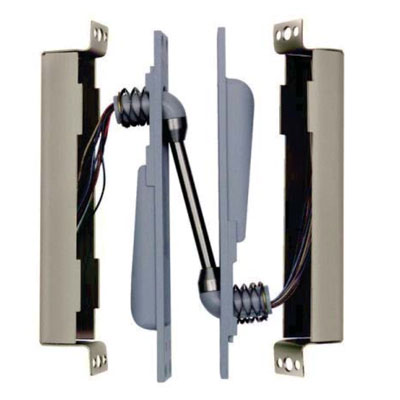

The Cal Royal CRPT-10C Concealed Power Transfer Connect is a device that will transfer electrical power from a door frame to the edge of a swinging door. This is useful for an installation which involves heavy traffic. the unit is completely concealed when the door is closed.

Features

• CRPT-2, CRPT-10 and CRPT-10C are designed to transfer electrical power from the frame to the door in a very secure manner
• UL 10C-Listed for up to 3 hours for Fire Rated doors and frames, Standard 7-2, "Fire Test of Door Assemblies" (1997)
• UL-Listed as Miscellaneous Fire Door Accessories
• Classified according to Uniform Building Code (UBC)
• Unit is mortised into the edges of the door and frame and is completely concealed when door is in the close position
• Designed for use in high traffic openings
• Packaged individually with fasteners for wood, steel or aluminum doors and frames
• All parts are made of metal including back boxes - no plastic parts
• Crimp connectors are supplied for a more secure and clean connection

• Housing - 9" x 1 1/4" x 1 5/8"
• Minimum door thickness - 1 3/4"
• Ten 24 gauge wires
• 3 separate quick-link connectors for a more organized connection
• 1 amp at 24VDC, with a 16 amps maximum surge
