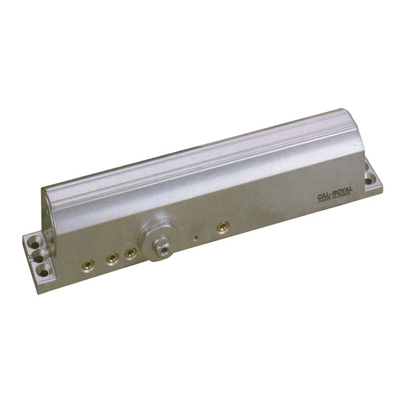

Cal Royal N900PBF Commercial Door Closer

The Cal Royal 900 commercial hydraulic door closer provides the strength and endurance to meet grade 1 standards at an affordable price. This is a heavy duty multi-size closer is adjustable from one to six for the power adjustment Available in three standard colors aluminum, dark brown and painted gold finish Plated finishes are also available (for pricing and availability on plated finishes please call 1-800-508-6889) This commercial door closer is packaged with three most common mounting applications, parallel arm, standard arm and regular arm. The hydraulic adjustments for the door closer include back check to cushion the door from opening too far. Sweep adjustment to control the initial closing of the door and latch valve to control the speed of the door at its final closing position.

• Cal-Royal‚Ä_€¢_å_õ_s Finest Hydraulic Door Closer Series Meeting The Highest Industry Standards, Grade 1
• Heavy-Duty Full Feature Multi-Size Commercial Door Closer For Use In Office Buildings, Shopping Centers And Other Commercial Buildings
• Standard Back-Check Function
• Full Plastic Cover Is Standard Feature. (Metal Optional)
• Optional Plated Decorative Covers Are Available
• Optional Adjustable Delayed Action for Handicapped Or Elderly
• Full Cover Multi-size
• Full Feature Closer
• ANSI 156.4 Grade 1
• UL Listed, Conforms to Standards UL10C and UBC7-2-1997
• BHMA Certified Lifetime Warranty

Features

• Hydraulic Door Closer
• ANSI 156.4 Grade 1: UL listed for fire door assemblies
• Universal application. Non-handed for standard, top-jamb or parallel arm installation
• Non-sized, 1 thru 6 FACTORY PRESET SIZE 3
• Door weights 30-260 lbs (all models)
• Standard adjustable back-check function
• Adjustable closing and latching speed by two separate regulating valves
• Standard full plastic cover
• Available in Alum, Duro, Gold, White, US3, 26, 26D, 10, 15, 10B, 4, 32D and 5 Finishes
• Optional adjustable delayed action (DA) Preset at the factory for approximately 20 seconds, between 70‚Ä_€¢_å_õ_ and 0‚Ä_€¢_å_õ_ Delay time easily adjusted up to 1 minute
• Barrier free (BF) Meets ADA regulation. Size 1 thru 6. Engineered with reduced spring power to provide easier opening for handicapped or elderly.

Accessories

• Parallel Arm Drop Bracket for non hold open parallel arm applications to clear a surface-applied stop/holder. 904
• Parallel hold-open adjustable arm (Non-handed). 901/902
• Optional Stainless Steel Metal cover
• Optional, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe. SPAS/900
• Optional, non-handed parallel arm features solid forged steel main arm and forearm provides hold-open function with templated stop/hold-open points. Handle controls hold-open function. HOSRPS/900
• Optional Slide Track Arm. TRACK/900 with hold open
• Flat drop bracket 950
• Super rigid non-handed parallel arm with spring loaded stop in the soffit shoe. Equivalent to LCN SPRING CUSH ARM. 900SPRING
• Super rigid parallel arm stopper hold open, non-handed with spring loaded stop in soffit shoe. Handle controls hold open function. Equilvalent to LCN SPRING H-CUSH ARM. 900HOSPRING
• Optional adjustable delayed action (DA) preset at factory for approximately 20 seconds, between 70‚Ä_€¢_å_õ_ & 0‚Ä_€¢_å_õ_. Delay time easily adjusted up to 1 minute.
• Barrier Free (BF) meets ADA Regulations. Size 1 thru 6. Engineered with reduced spring power to provide easier opening for handicapped or elderly.
