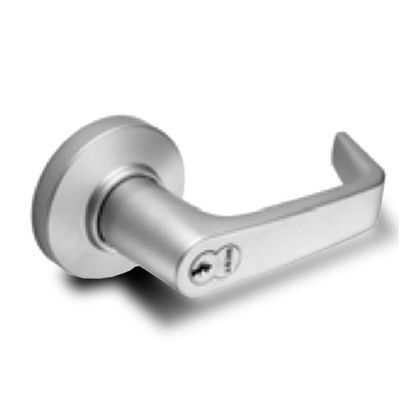

Stanley Best 9k Series Fail Safe Electrified Lever Lock 9KW37DEL15DS3626

The Stanley Best 9k Series Fail Safe Electrified Lever Lock 9KW37DEL15DS3626 is an electrically controlled lockset that allows you to remotely control the locking and unlocking of the door from a separate device. This is a grade 1 lever handleset for doors that are 1 3/4" thick. This lockset allows you to unlock it only by turning off the power to the lock. Otherwise, the door is always locked. You can always leave the room, but to get in the room you need to either use a key or switch off the 24V DC that the lock uses. As a grade 1 lever lock, it is designed to last through heavy use such as on a main entrance to an office. Standard lock is less core, but you have the option to choose keyway and core as needed. Specifications

• Certifications_ UL Listed: Listed by Underwriter's Laboratories for use on 3 Hr, A label single swinging doors (4'x10'). GYJT Builders Hardware-single point locks or latches. American National Standard: ANSI A156.2, Series 4000 Grade 1 (formerly FF-H-106C Series 161.)
• Finish_ BHMA US DESCRIPTION 605 3 bright brass 606 4 satin brass 611 9 bright bronze 612 10 satin bronze 613 10B oxidized satin bronze, oil rubbed 618 14 bright nickel plated 619 15 satin nickel plated 622 19 flat black 625 26 bright chromium plated 626 26D satin chromium plated 690 20 dark bronze
• Backset_ 2 3/4" standard, 3 3/4" and 5" available.
• Chassis_ Critical latch and chassis components are brass or corrosion-treated steel. 2 1/16" diameter to fit 2 1/8" hole in door (Conforms to ANSI A115.2). Lost Motion feature available as an option.(see page 11 for special features)
• Door thickness_ Available for 1 3/4"
• Latch_ Solid brass 9/16" throw. Front 2 1/4" x 1 1/8" beveled.
• Lever handles_ Lever handles are a high-quality zinc alloy. Trim components are brass or bronze.Body is approximately 1 5/8" in diameter; Handle is approximately 4 3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.
• Mounting_ In addition to standard door preparation (ANSI A115.2 for 1 3/4" doors), two additional holes are needed for through-bolts. Through-bolts require two 5/16" diameter holes located at 12 o'clock and 6 o'clock positions. A drill jig is provided to insure accuracy of the holes. (see KD303 on back page).
• Projection on door_ Approximately 2 3/4" when mounted on 1 3/4" door.
• Roses_
  • C - 3" Convex
  • D - 3 1/2" Convex
  • K - 3" Convex - no ring
  • L - 3 1/2" Convex - no ring
• Strike_ STK: Conforms to ANSI A115.2 (2 3/4" x 1 1/8" with curved lip & box). S3: Conforms to ANSI A115.2 for 1 3/4" doors (4 7/8" x 1 1/4" with curved lip).S3-7/8: Conforms to ANSI A115.2 for 1 3/4" doors (4 7/8" x 1 7/8" flat)

The Stanley Best 9k Series Fail Safe Electrified Lever Lock 9KW37DEL15DS3626 comes in a satin chrome finish.
