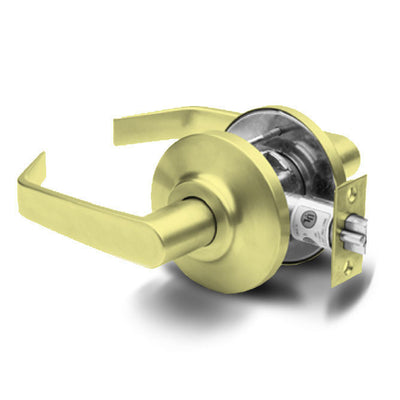

Best 7K Lockset Passage Function 7KC30N15DS3605

$158.00

Availability: In stock

SKU: 7KC30N15DS3605

Choose from the following options:

Related Products

Stanley Best 7KC30N15DS3605 Lockset Passage Function

The Best 7K Lockset Passage Function 7KC30N15DS3605 is a lever handled lockset designed for commercial buildings such as offices. This cylindrical lockset is a passage function. The door cannot be locked through the handleset from either the inside or the outside. The door will always be unlocked. This is best used for doors that separate sections within an office or for rooms that do not hold important items. This lock comes with a 2 3/4 inch backset. SPECIFICATIONS

  • Backset - 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
  • Interchangeable Core Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
  • Latch - 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
  • Lever - 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
  • Material - Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
  • Mounting - 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
  • Rose - D- 3 1/2" diameter mounting screws concealed.
  • Strike - STK (standard)  2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
  • Door thickness - 1 3/8" to 2"
The Best 7K Lockset Passage Function 7KC30N15DS3605 comes in a bright brass finish.
