Best 7K Locks Lockset Passage Function 7KC30N15DS3626
Quantity: In Stock
SKU: 7KC30N15DS3626
Best 11B722 Padlock Less Core Brushed Brass Finish
Best 11B722 Padlock Less Core Brushed Chrome Finish
Best 11B782 Padlock Less Core Brushed Brass Finish
Best 11B782 Padlock Less Core Brushed Chrome Finish
- Description

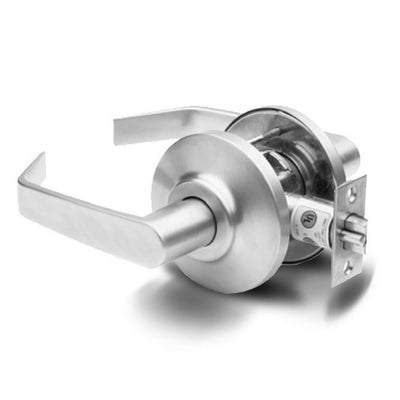

Stanley Best 7KC30N15DS3626 Lockset Passage Function
The Best 7K Locks Lockset Passage Function 7KC30N15DS3626 is a lever handled lockset designed for commercial buildings such as offices. This cylindrical lockset is a passage function. The door cannot be locked through the handleset from either the inside or the outside. The door will always be unlocked. This is best used for doors that separate sections within an office or for rooms that do not hold important items. This lock comes with a 2 3/4 inch backset. SPECIFICATIONS
- Backset - 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
- Interchangeable Core Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch - 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
- Lever - 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
- Material - Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
- Mounting - 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
- Rose - D- 3 1/2" diameter mounting screws concealed.
- Strike - STK (standard)Â 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
- Door thickness - 1 3/8" to 2"
