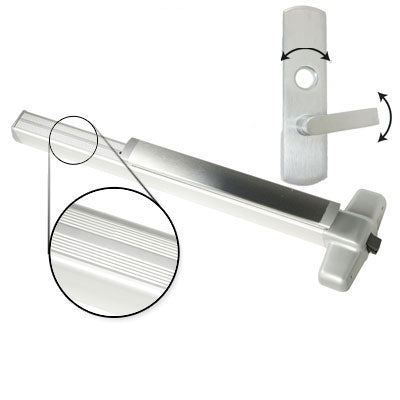

Von Duprin AX99L-06 F 3 US28 LHR Aluminum Finish Three Foot Fire Rated Accessible Rated Panic Bar With 06 Left Hand Reverse Lever Trim
Quantity: In Stock
SKU: AX99L-06 F 3 US28 LHR
The Von Duprin AX99L-06 F 3 US28 LHR Aluminum Finish Three Foot Fire Rated Accessible Rated Panic Bar With 06 Left Hand Reverse Trim is currently available.
The 98 and 99 series exit devices from Von Duprin are for all types of single doors and double doors with a mullion. They are installed across the inside of a door to allow for egress during panic situations, where the door will operate by pushing against the bar. The 98 series panic bars have a smooth mechanism case while the 99 series has a grooved mechanism case. This rim device is non-handed, which means it can be installed on doors that swing either left or right. These devices are ANSI A156.32014 rated and considered Grade 1 door hardware.
The AX99L panic bars are California approved panic bars for glass doors. Accessible rated panic bars can only use a maximum of five pounds of pressure to operate. The Von Duprin AX99L series panic bars all meet the building standards for accessibility.
The 99L function panic bar comes with lever trim hardware for the exterior of the door. The lever trim is classroom function, where a key will lock and unlock the lever for use. The lever can then be used to activate the latch, allowing entry. The panic bar will always allow egress through the door.
This hardware is fire rated and can be used on a fire door.
This Von Duprin series California approved panic bar comes in an aluminum finish.
