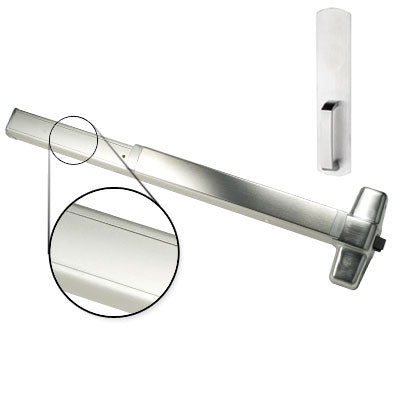

Von Duprin AX98DT 3 US28 Accessible Rated Panic Bar With Dummy Pull Trim

Quantity: In Stock

SKU: AX98DT 3 US28

Choose from the following options:

Qty:

Related Products

Von Duprin AX99EO 3 US26D Brushed Chrome Finish Three Foot Accessible Rated Panic Bar Exit Only Von Duprin AX99EO 3 US26D Brushed Chrome Finish Three Foot Accessible Rated Panic Bar Exit Only

Von Duprin AX99EO 3 US26D Brushed Chrome Finish Three Foot Accessible Rated Panic Bar Exit Only

$1,266.00

Von Duprin AX99EO 3 US19 Black Finish Three Foot Accessible Rated Panic Bar Exit Only Von Duprin AX99EO 3 US19 Black Finish Three Foot Accessible Rated Panic Bar Exit Only

Von Duprin AX99EO 3 US19 Black Finish Three Foot Accessible Rated Panic Bar Exit Only

$2,270.00

Von Duprin AX99EO 3 US28 Aluminum Finish Three Foot Accessible Rated Panic Bar Exit Only Von Duprin AX99EO 3 US28 Aluminum Finish Three Foot Accessible Rated Panic Bar Exit Only

Von Duprin AX99EO 3 US28 Aluminum Finish Three Foot Accessible Rated Panic Bar Exit Only

$1,642.00

Von Duprin AX99EO 4 US28 Aluminum Finish Four Foot Accessible Rated Panic Bar Exit Only Von Duprin AX99EO 4 US28 Aluminum Finish Four Foot Accessible Rated Panic Bar Exit Only

Von Duprin AX99EO 4 US28 Aluminum Finish Four Foot Accessible Rated Panic Bar Exit Only

$1,283.00

  • Description

AX98/99 Accessible Device Click Here For Manufacture Data Sheet

The AX device is a UL certified exit device designed to meet the progressive requirements of the California Building Code for accessible openings. This device meets the 5 lbs of operating force requirement called for in chapter 11B-309.4. The AX device also exceeds ANSI/BHMA requirements

Additionally, all AX devices will be shipped with a new UL label clearly stating Meets California building Code (2013) Sec. 11B-09.4 and an AX identifier label on device center case.

98/99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 2014 Grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs_consult template).
