Von Duprin 9975EO 3 US28 Mortise Lock Panic Bar Exit Only
Quantity: In Stock
SKU: 9975EO 3 US28
Von Duprin 990DT Dummy Trim
Von Duprin 990NL Night Latch Trim
Von Duprin 996L-BE-06 M Blank Escutcheon Lever Trim
- Description

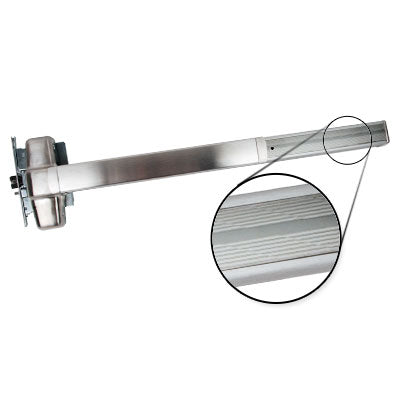

The Von Duprin 9875 EO Mortise Lock Panic Bar Exit Only is for all types of single or double doors, UL listed for Panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3/4" (121mm). The 9875 device has a smooth mechanism case and the 9975 device has a grooved case. The mortise lock device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch). The 9975 EO panic bar features a grooved case.
Specifications
Device functions -Â Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device lengths - 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor -Â 39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case dimensions -Â
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions -Â
2 1/4" x 2 1/4" (57mm x 57mm)
Projection -Â
Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Fasteners & sex bolts (SNB) -Â
Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 17 for quantities.
