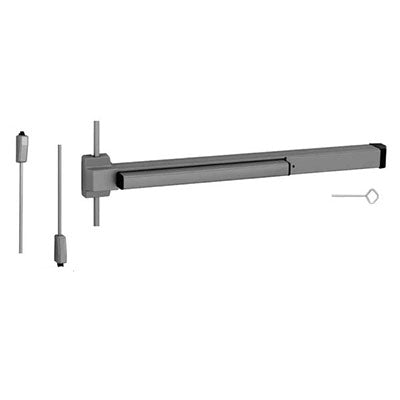

Von Duprin 2227EO 3 SP28 Vertical Rod Panic Bar
Regular price
Quantity: In Stock
SKU: 2227EO 3 SP28
Von Duprin 210K Knob Trim
$222.00
Von Duprin 210NL Night Latch Trim
$58.00
Von Duprin 230DT Dummy Trim
$102.00
Von Duprin 230EO Exit Only Trim Plate
$93.00
Von Duprin 230NL Night Latch Trim
$111.00
Von Duprin 230TP Thumb Piece Trim
$215.00
- Description
The 2227 series rim device is an economical alternative, incorporating a modern touchbar styling for all types of doors.
Features:
- Devices are ANSI A156.3 2001 Grade 1.
- Surface mounted vertical rod device for all types of single or double doors with mullion
- UL listed for Panic Exit Hardware.
- Covers stock hollow metal doors with 161 cutouts.
- Standard color is SP28 Painted Aluminum
- Fits door stiles as narrow as 3 13/16" (97mm)
- Functions - Ships ready for all functions; EO, DT, NL, TP, K, L
- Handing - Non-Handed
- Device Lengths - 3' (914mm) and 4' (1219mm)
- Device Centerline From Finished Floor - 39 13/16" (1011 mm) at center of device
- Fasteners - Includes screw pack for 1 3/4‰ۢÌÛ_ (44mm) and 2 1/4‰ۢÌÛ_ (57mm) for thick metal or wood doors.
