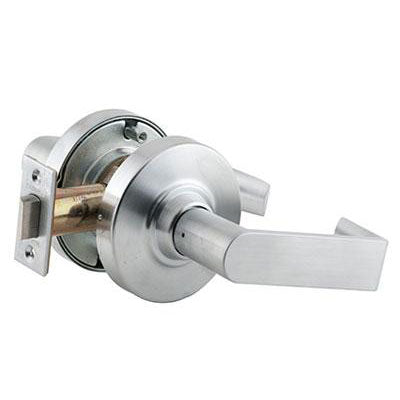

Schlage ND10S RHO 626AM Antimicrobial Passage Function ND Series Rhodes Lever Grade 1 Lock Brushed Chrome Finish

The Schlage ND10S RHO 626AM Antimicrobial Passage Function ND Series Rhodes Lever Grade 1 Lock Brushed Chrome Finish is a handleset lock that can be used as the handle of a door. The ND Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas.

Locks with an antimicrobial finish are coated with an IFS silver antimicrobial additive that inhibits enzyme activity and the multiplication of microbes. When microbes can't multiply, they die out quicker, keeping the lock from being a breeding ground for microbes.

This lock is a passage function lock. This lockset is always unlocked and allows passage through the door.

Specifications
Handing:

• All ND-Series lever locksets are non-handed.

Door Thickness:

• 1 5/8" to 2 1/8" (41mm_54mm) standard including Vandlgard functions.
• 1 3/4" - 2" for function ND85. See accessories for spacers required for 1 3/8" doors.

Backset:

• 2 3/4" (70 mm) standard. 2 3/8", 3 3/4"í«í_and 5" (60 mm, 95 mm, 127 mm) optional.

Faceplate:

• Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57mm) square corner, beveled.

Lock Chassis:

• Zinc plated for corrosion resistance.

Latch Bolt:

• Steel, 1/2" (12mm) throw, deadlocking on keyed and exterior functions.
• 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors.

Exposed Trim:

• Levers: Pressure cast zinc, plated to match finish symbols.
• Roses: Brass, bronze or zinc.

Strike:

• ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard.

Cylinder & Keys:

• 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.

Keying Options:

• Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.

Certifications
ANSI:

• Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements. Meets A117.1 Accessibility Code.

Federal:

• Meets FF-H-106C Series 161.

California State Reference Code:

• (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2" (64mm) returns comply; Schlage levers return to within 1/2" of door face.

MEA Certification:

• All electrified locking (fail-safe, unlocked by switch or power failures) functions accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E).
• All levers with less than 1/2" (64mm) returns comply with California Fire Safety Codes.

Florida Building Commission:

• 3/4" and 1/2" throw latch approved for Hurricane Resistance with Miami-Dade County, Florida.

UL / cUL:

• All locks listed for A label single doors, 4" x 8". Letter F and UL symbol.

ADA Compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
