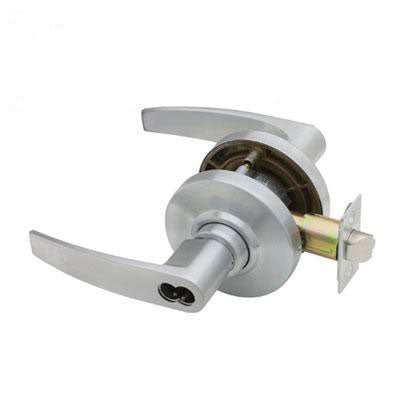

Schlage AL53BD JUP US26D AL Series Jupiter Lever Grade 2 Lock Accepts Best SFIC Less Core US Finishes

Regular price

Quantity: In Stock

SKU: AL53BD JUP US26D

Choose from the following options:

Qty:
Schlage AL Jupiter Lever Grade 2 Lock With Cylinder US Finishes Schlage AL Jupiter Lever Grade 2 Lock With Cylinder US Finishes

Schlage AL Jupiter Lever Grade 2 Lock With Cylinder US Finishes

$190.00

Schlage AL Series Jupiter Lever Grade 2 Lock Accepts Schlage LFIC Less Core US Finishes Schlage AL Series Jupiter Lever Grade 2 Lock Accepts Schlage LFIC Less Core US Finishes

Schlage AL Series Jupiter Lever Grade 2 Lock Accepts Schlage LFIC Less Core US Finishes

$223.00

Schlage AL Series Jupiter Lever Grade 2 Lock Less Cylinder US Finishes Schlage AL Series Jupiter Lever Grade 2 Lock Less Cylinder US Finishes

Schlage AL Series Jupiter Lever Grade 2 Lock Less Cylinder US Finishes

$201.00

  • Description

The Schlage AL Series is a Grade 2 Lock for offering dependable performance for high traffic commercial applications. AL Locks are designed to deliver ADA Compliant accessibility and constant, reliable performance. The Al Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas

Specifications:

  • Handing: Non-handed.
  • Door Thickness: 1 3/8" to 1 7/8" (35 mm to 48 mm) standard. 2" (51 mm) optional.
  • Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm), 3 3/4" (95 mm) and 5" (127 mm) optional.
  • Front: Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying, and construction keying.
Certifications:
  • ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code.
  • Federal: Meets FF-H-106C.
  • California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.
  • UL / cUL: All locks listed for A label single doors, 4" x 8". Letter F and UL symbol on latch front indicate listing.
.
