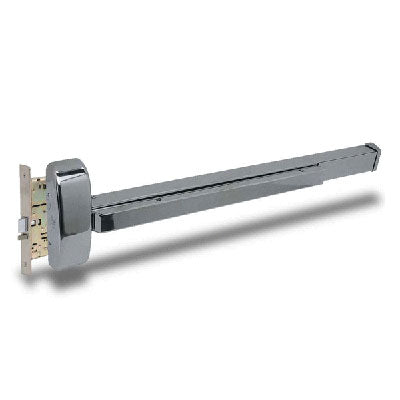

Cal Royal MR9800EO36 US32D Mortise Rim Panic Bar

Regular price

Quantity: In Stock

SKU: MR9800EO36 US32D

Choose from the following options:

Qty:
Cal Royal NESC 9800 Panic Bar Lever Trim Cal Royal NESC 9800 Panic Bar Lever Trim

Cal Royal NESC 9800 Panic Bar Lever Trim

$159.00

Cal Royal 9800NL Panic Bar Keyed Pull Trim Cal Royal 9800NL Panic Bar Keyed Pull Trim

Cal Royal 9800NL Panic Bar Keyed Pull Trim

$88.00

Cal Royal 9800 DTP Outside Pull Trim Cal Royal 9800 DTP Outside Pull Trim

Cal Royal 9800 DTP Outside Pull Trim

$69.00

Cal Royal 9800 EOP Blank Plate Trim Cal Royal 9800 EOP Blank Plate Trim

Cal Royal 9800 EOP Blank Plate Trim

$39.00

  • Description
The Cal Royal MR9800 Mortise Rim Panic Bar is the 9800 Series exit device combined with the added security of a mortise lock. This panic bar is a Grade 1 device, designed for the heaviest traffic areas. It comes in lengths of 36 nd 48 inches, but can be cut down a maximum of 6 inches to fit doors as small as 30 inches or 42 inches. Unlike the regular 9800 series panic device, this mortise lock panic bar is handed, which means that it is designed for a door that swings a specific direction. You must choose your handing when ordering. SPECIFICATIONS
  • For Doors: Wood/metal. 1-3/4" (44.5mm) minimum thickness. 4-1/2" (114mm) minimum stile width.
  • Chassis: Nonferrous alloy.
  • Chassis Cover: Non-ferrous plated material.
  • End Cap: Brass, Bronze or Stainless Steel construction.
  • Handing: Non-Handed. Specify RHR or LHR for convenience.
  • ANSI Standard: A156.3, Grade 1.
  • Mounting: Furnished standard with wood and machine screws.
  • Strikes: Standard ANSI strike.
  • Mortise Lock: Grade (1) for 1-3/4" (44.5mm) thick doors. Reversible. Fits door prepared for ANSI Standard A115.1.
  • Fire Exit Hardware: FMR9800 Series for fire exit hardware for all types of 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
  • Electric Functions: (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
  • Door Size: MR9800EO36 for 36" doors. MR9800EO48 for 48" doors.
  • Alarm: Prefix "NALRM" before PART#
  • Dogging Feature: Cylinder dogging available for non fire rated applications.
The Cal Royal MR9800 Mortise Rim Panic Bar comes in either a US32D stainless steel finish or a US10B oil rubbed bronze finish.
