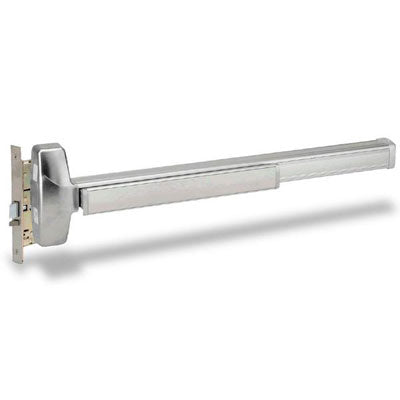

Cal Royal MR7700EO36 US32D Mortise Lock Panic Bar

Quantity: In Stock

SKU: MR7700EO36 US32D

Choose from the following options:

Qty:

Related Products

Cal Royal 7700NL Night Latch Trim Cal Royal 7700NL Night Latch Trim

Cal Royal 7700NL Night Latch Trim

$88.00

Cal Royal 77TP00 Thumbpiece Trim Cal Royal 77TP00 Thumbpiece Trim

Cal Royal 77TP00 Thumbpiece Trim

$132.00

Cal Royal 7700DTP Dummy Trim Pull Cal Royal 7700DTP Dummy Trim Pull

Cal Royal 7700DTP Dummy Trim Pull

$70.00

Cal Royal 7700 EOP Exit Only Plate Trim Cal Royal 7700 EOP Exit Only Plate Trim

Cal Royal 7700 EOP Exit Only Plate Trim

$39.00

  • Description
The Cal Royal MR7700 Mortise Lock Panic Bar is the 7700 Series exit device combined with the added security of a mortise lock. This panic bar is a Grade 1 device, designed for the heaviest traffic areas. It comes in lengths of 36 nd 48 inches, but can be cut down a maximum of 6 inches to fit doors as small as 30 inches or 42 inches. Unlike the regular 7700 series panic device, this mortise lock panic bar is handed, which means that it is designed for a door that swings a specific direction. You must choose your handing when ordering. SPECIFICATIONS
  • For Doors: Wood/metal. 1-3/4" (44.5mm) minimum thickness. 4-1/2" (114mm) minimum stile width.
  • Chassis: Nonferrous alloy (Panic Grade), steel (Fire Grade).
  • Chassis Cover: Non-ferrous plated material.
  • End Cap: Brass, bronze or stainless steel construction.
  • Handing: Handed. Reversible. Specify RHR or LHR for convenience.
  • ANSI Standard: A156.3, Grade 1.
  • Mounting: Furnished standard with wood and machine screws.
  • Strikes: Standard ANSI strike.
  • Mortise Lock: Grade (1) for 1-3/4" (44.5mm) thick doors. Reversible. Fits door prepared for ANSI Standard A115.1.
  • Fire Exit Hardware: FMR7700 Series for fire exit hardware for all types of 8ÃŒ_ÃŒ_å¢Ì_ÃŒ__ x 8ÃŒ_ÃŒ_å¢Ì_ÃŒ__ double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
  • Electric Functions: (ELR) Electrical Latch Retraction and RX & LX Signal Switch available upon request by phone.
  • Alarm: Prefix "NALRM" before PART#
  • Dogging Feature: Cylinder dogging available for non fire rated applications.
The Cal Royal MR7700 Mortise Lock Panic Bar comes in either a US32D stainless steel finish or a US10B oil rubbed bronze finish.
