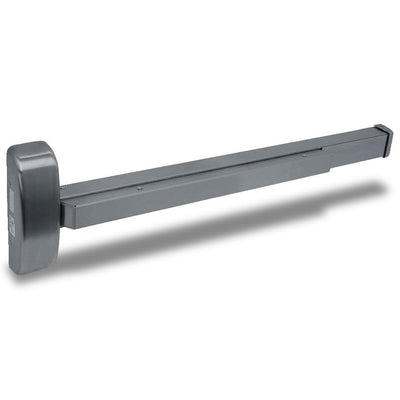

Cal Royal M98CVR3684 US32D Panic Bar With Concealed Vertical Rods For Metal Doors
Regular price
Quantity: In Stock
SKU: M98CVR3684 US32D
Cal Royal NESC 9800 Panic Bar Lever Trim
$159.00
Cal Royal 9800NL Panic Bar Keyed Pull Trim
$88.00
Cal Royal 9800 DTP Outside Pull Trim
$69.00
Cal Royal 9800 EOP Blank Plate Trim
$39.00
- Description
The Cal Royal 9800 Series Panic Bar With Concealed Vertical Rods For Metal Doors is a panic device that latches in the top and bottom of the frame using concealed vertical rods within the door instead of with a latch on the side. This is a Grade 1 panic bar meant for doors that are 36 inches wide and either 84 or 96 inches tall. The panic bar can be cut down a maximum of 6 inches to fit narrower doors as small as 30 inches wide. SPECIFICATIONS:
- For Doors: Metal. 1-3/4" (44.5mm) minimum thickness. 4-1/2" (114mm) minimum stile width.
- Chassis: Non-ferrous alloy (Panic Grade), steel (Fire Grade).
- Chassis Cover: Bronze or stainless steel.
- Mounting: Furnished standard with machine screws.
- End Cap: Brass, bronze or stainless steel construction.
- Hand: Easily field reversible. Specify at time of order LHR or RHR for convenience.
- ANSI Standard: A156.3, Grade 1.
- Strikes: 260 top and 265 bottom.
- Top and Bottom Bolts: Stainless steel. Top and bottom bolt travel 7/16" (11mm). Projection adjustable up to 1" (25mm).
- Fire Exit Hardware: FMCVR9800 Series for fire exit hardware for all types of 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
- Rail Height: Specify door opening and mounting height of center line of rail when ordering a vertical rod exit device 41" from floor.
- Electric Functions: (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
- Alarm: Prefix "NALRM" before PART#
- Dogging Feature: Cylinder dogging available for non rated applications.
