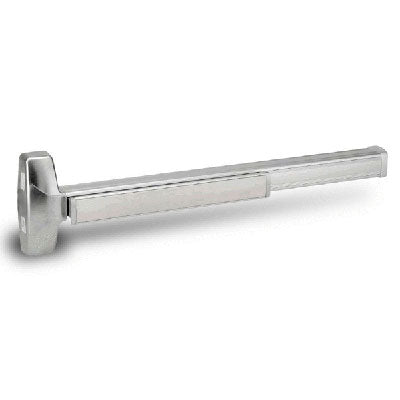

Cal Royal W77CVR3684 US32D Concealed Vertical Rod Panic Bar For Metal Doors

$571.00

Availability: In stock

SKU: W77CVR3684 US32D

Choose from the following options:

Related Products

The Cal Royal 7700 Concealed Vertical Rod Panic Bar For Wood Doors W77CVR3684 is a panic device that latches in the top and bottom of the frame using concealed vertical rods within the door. This is a Grade 1 panic bar meant for doors that are 36 inches wide and either 84 or 96 inches tall. The panic bar can be cut down a maximum of 6 inches to fit narrower doors as small as 30 inches wide. SPECIFICATIONS:
  • For Doors: Wood. 1 3/4" (44.5mm) minimum thickness 4 1/2" (114mm) minimum stile width.
  • Chassis: Nonferrous alloy (Panic Grade), steel (Fire Grade).
  • Chassis Cover: Non-ferrous plated material.
  • Mounting: Furnished standard with machine screws.
  • End Cap: Brass, Bronze or Stainless Steel construction.
  • Hand: Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience.
  • ANSI Standard: A156.3, Grade 1.
  • Strikes: 260 top and 265 bottom.
  • Top and Bottom Bolts: Stainless Steel . Top and bottom bolt travel 7/16" (11mm) Projection adjustable up to 1" (25mm).
  • Fire Exit Hardware: FWCVR7700 Series for fire exit hardware for all types of 8' x 8' Double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
  • Rail Height: Specify door opening and mounting height of center line of rail when ordering a Vertical Rod Exit Device 41" from floor.
  • Electric Functions: (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
  • Alarm: Prefix "NALRM" before PART#
  • Dogging Feature: Cylinder dogging available for non rated applications.
The Cal Royal 7700 Concealed Vertical Rod Panic Bar For Wood Doors W77CVR3684 comes in the US32D stainless steel finish and the US10B Oil Rubbed Bronze finish.
